Intelligent Biometric Controller
CoreStation
-
Compact Fingerprint Reader
BioEntry R2
-
Outdoor Compact RFID Reader
XPass D2
-
Multiple Input Extension Module
Input Module
-
Multiple Output Extension Module
Output Module
-
Secure Multi-door I/O Module
Door Module
-
Compact Secure Single Door I/O Module
Secure Module

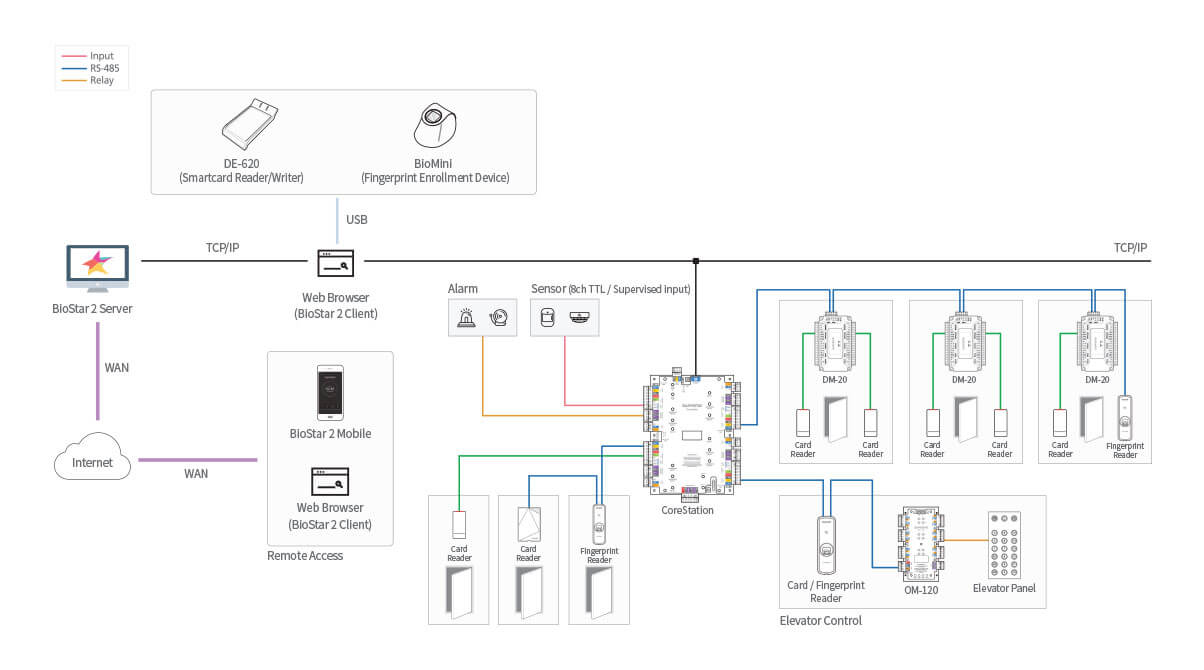

With Suprema's CoreStation and readers, you can build a centralized system. This system would be based on access control units (ACU). Suprema's centralized system not only offers the benefits of biometrics, but it also gives you enhanced security with excellent system scalability. In addition to this, the centralized system enables you to upgrade your existing systems at a much lower installation cost. Integrated with BioStar 2, this system safely stores all information about each user. This includes their name, ID, PIN, access rights and fingerprint data by storing it on a single device. Suprema's intelligent biometric controller, CoreStation, is capable of performing fingerprint matching as well as reading RFID cards. It provides different performance and features based on a 4-channel module that boasts of a superior hardware performance and scalability.
Features
Strength in Numbers
-
Performs 400,000 times of fingerprint matching within 1 second
Stores information on close to 500,000 users and RFID cards
Stores up to 5,000,000 text logs
Controls up to 132 Wiegand devices (DM-20 connection required)
Controls up to 64 RS-485 devices
Processes fingerprint authentication on up to 8 devices simultaneously within 1 second
